Built to last.Foundation Waterproofing in Nashville, TN

How the pieces fit

One foundation. Four connected parts.

  1. 01

    Positive grade

    Where site conditions allow, finished grade slopes away to direct surface water from the foundation.

  2. 02

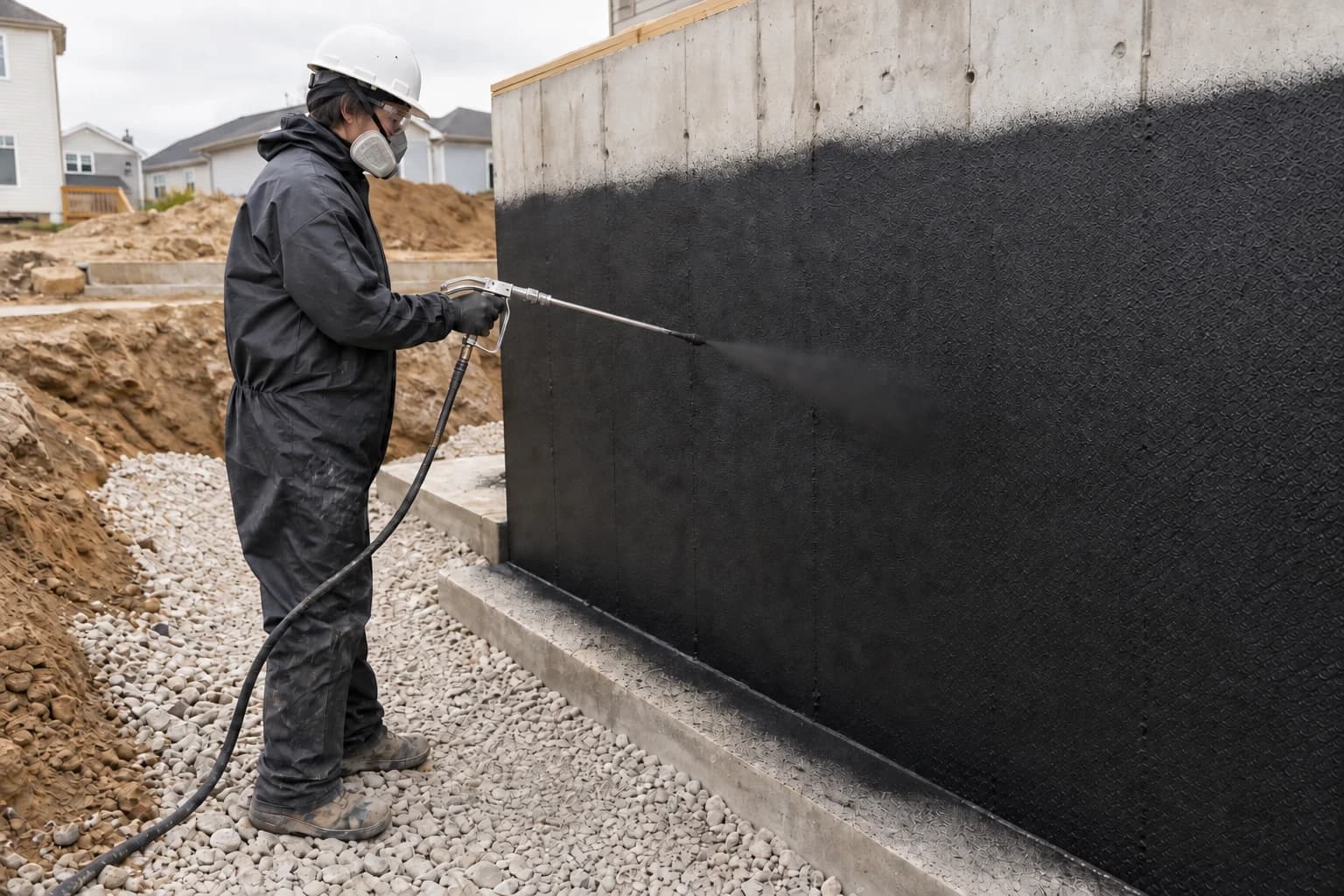

    Exterior wall treatment

    Waterproofing is shown. Damp proofing is an alternative scope—not a second layer.

  3. 03

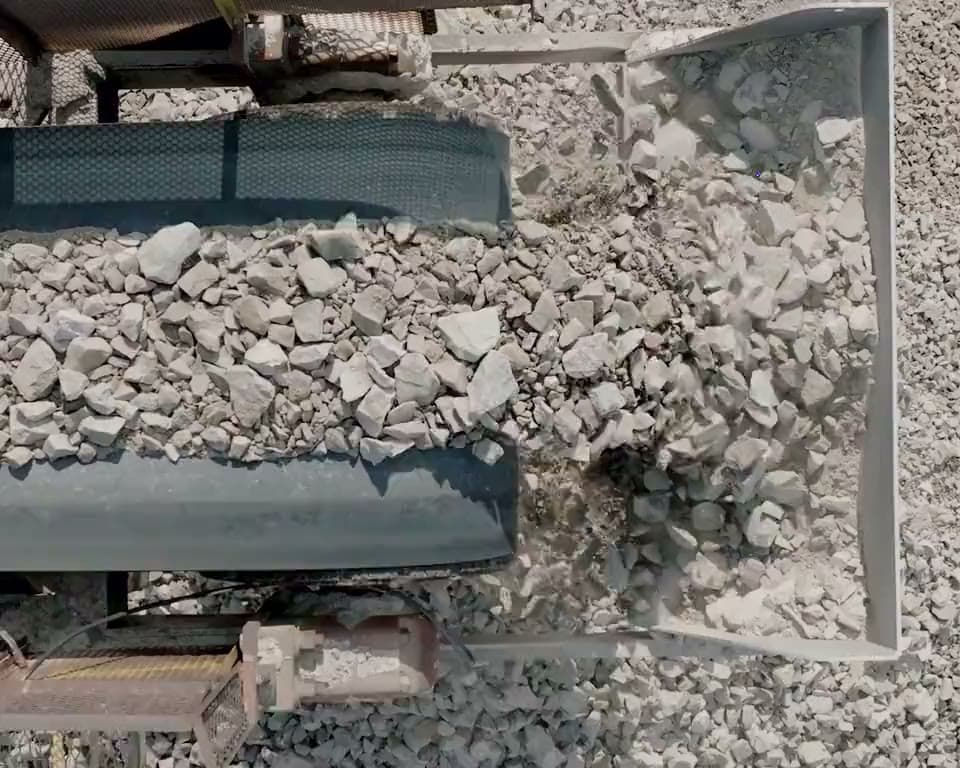

    Drainage aggregate & backfill

    Washed angular stone is shown; final aggregate and backfill follow the approved project detail.

  4. 04

    Footing drain

    The perforated drain is installed in washed aggregate at the footing; final elevation and approved discharge follow project plans and applicable code.

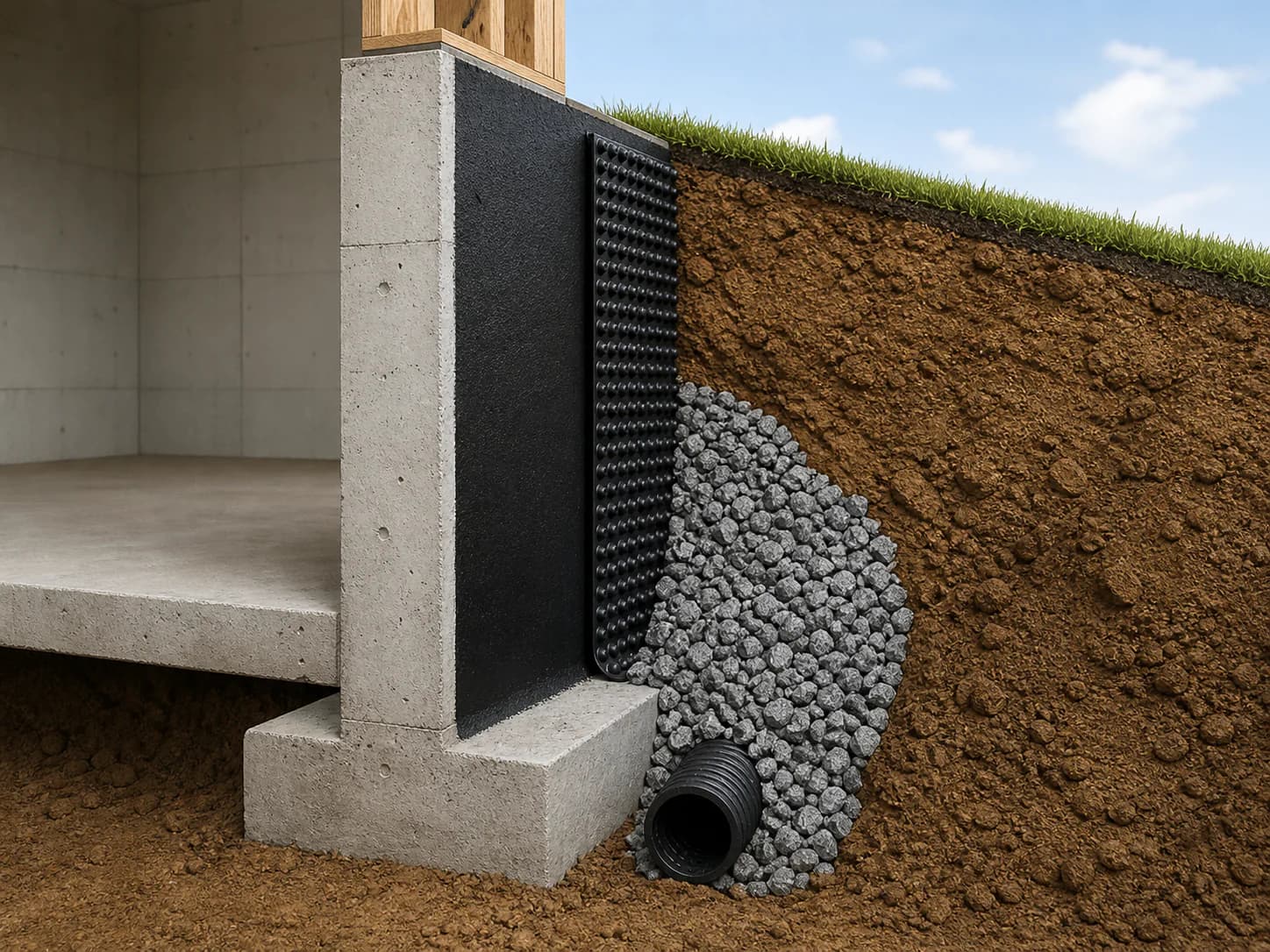

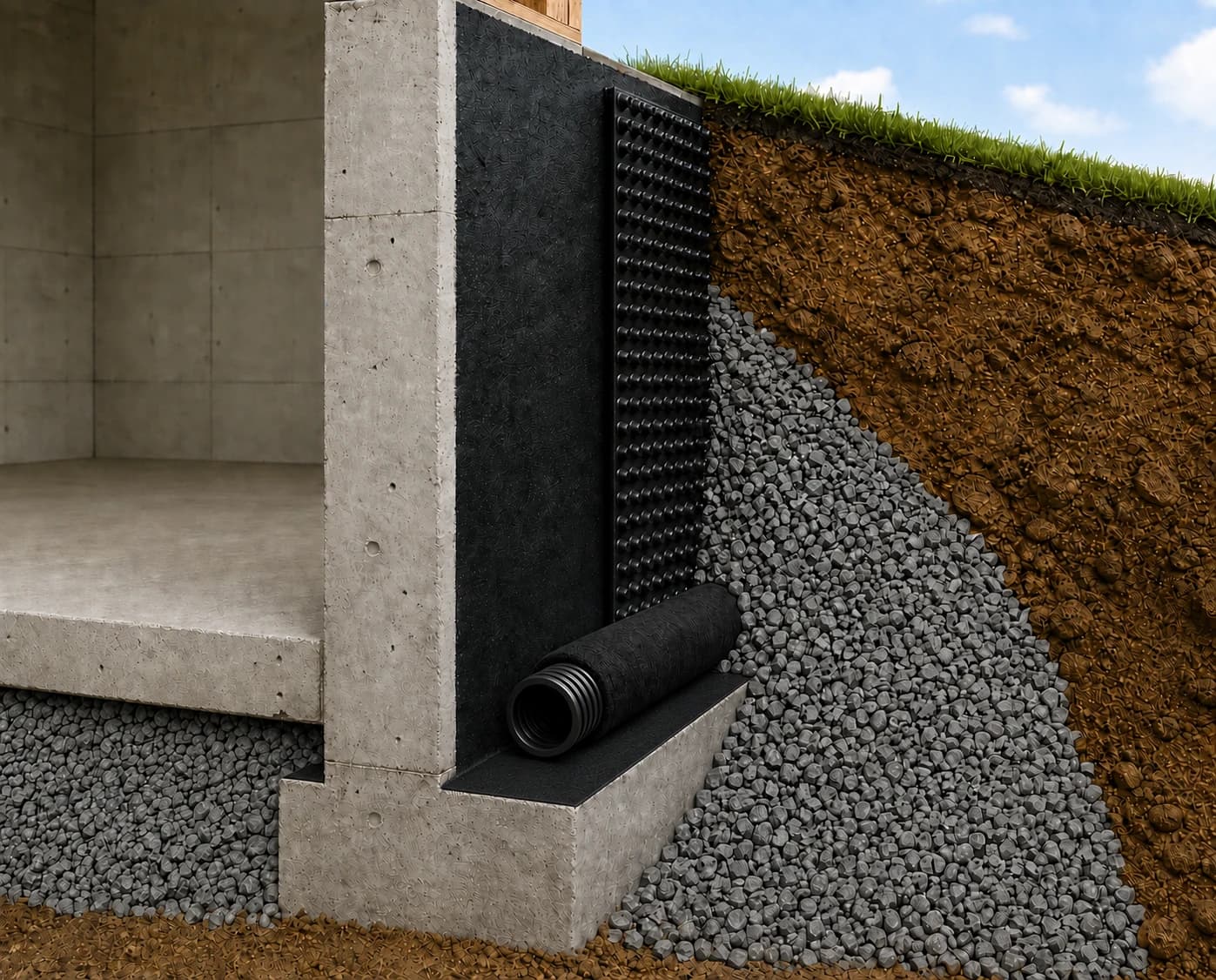

Foundation cross-section showing positive grade, one exterior wall treatment with waterproofing shown, washed drainage aggregate, and a perforated drain at the footing; damp proofing is an alternative treatment, and final details follow project plans and applicable code.
Illustrative only. Waterproofing is shown; damp proofing is an alternative wall treatment, not a second layer. Final wall treatment, drain elevation and approved discharge, aggregate, backfill, and grade follow project plans and applicable code.
